Liaoning Xunlian Packaging Products Co., Ltd. is one of the most reliable manufacturers and suppliers of types of fibc bags in China. If you're going to wholesale durable types of fibc bags made in China, welcome to get quotation from our factory. All customized products are with high quality and competitive price.

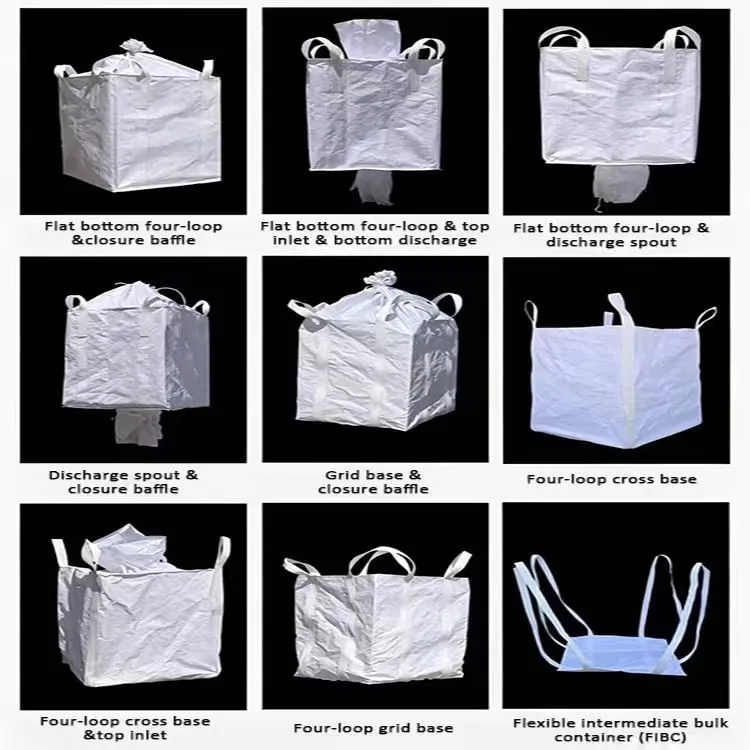

Corner Loop Type
|
No. |
Bag Type (Code) |
Structural Description |
Application Scenario |
|
1 |
Open top, bottom D/S |
Open top + bottom discharge spout |
For fast discharge of free‑flowing granules/powders |
|
2 |
Skirt top, bottom D/S |
Skirt top + bottom discharge spout |
For fine materials requiring dust suppression and spill containment |
|
3 |
Open top, bottom flat |
Open top + flat bottom |
For fixed discharge points, materials with low residue requirement |
|
4 |
Skirt top, bottom flat |
Skirt top + flat bottom |
General‑purpose applications requiring multiple filling and spill prevention |
|
5 |
F/S top, flat bottom |
Filling spout top + flat bottom |
For dust‑tight filling, high‑containment materials |
|
6 |
F/S top, D/S bottom |
Filling spout top + bottom discharge spout |
Fully enclosed dust‑free conveying; suitable for hazardous chemicals and food‑grade materials |
Cross Corner Loop Type
|
No. |
Bag type name |
Structure description |
Application scenario |
|
1 |
Open top, flat bottom |
Open top + flat bottom |
General applications; even load distribution at four corners for stable lifting |
|
2 |
Open top, discharge spout bottom |
Open top + discharge spout bottom |
For fast discharge of high-flowability materials |
|
3 |
Skirt top, flat bottom |
Skirt top + flat bottom |
Dust-tight, no spillage during filling; for fine powders |
|
4 |
Skirt top, discharge spout bottom |
Skirt top + discharge spout bottom |
Spill-proof + dust-free discharge; preferred for food & chemical applications |
|
5 |
Filling spout top, flat bottom |
Filling spout top + flat bottom |
Enclosed filling with no dust escape |
|
6 |
Filling spout top, discharge spout bottom |
Filling spout top + discharge spout bottom |
Fully enclosed dust-free conveying; for hazardous chemicals and high-demand food-grade materials |
Types of FIBC Bags: A Selection at a Glance
General dry goods (grain / sand) → Type A
Dry combustible powders (fertilizer / starch) → Type B
Chemical flammable powders / dust atmospheres → Type C (must be grounded)
High-risk / difficult-to-ground scenarios → Type D (safety priority)
Type A: Standard woven bag, no electrostatic protection. For non‑flammable materials only.
Type B: Suppresses high‑energy brush discharge via low breakdown voltage. Can be used for dry combustible powders, but not suitable for environments containing flammable gases or vapors.
Type C: Relies on a conductive fabric grid and reliable grounding to dissipate static electricity. Must be continuously grounded throughout use.
Type D: Uses anti‑static blended fabric that automatically dissipates static electricity without requiring grounding. Suitable for flammable/explosive atmospheres where grounding is difficult.
